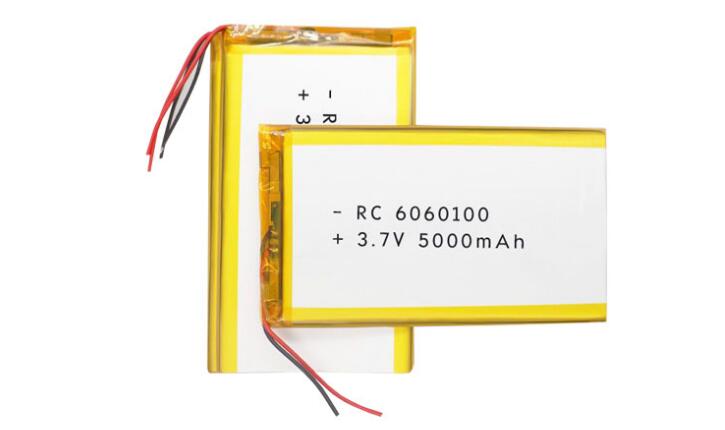

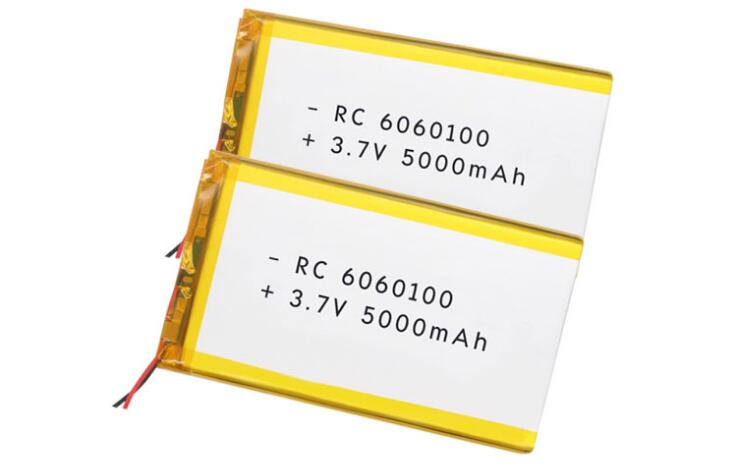

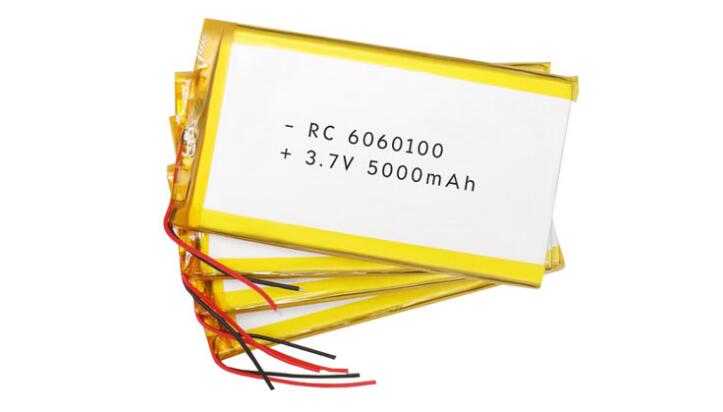

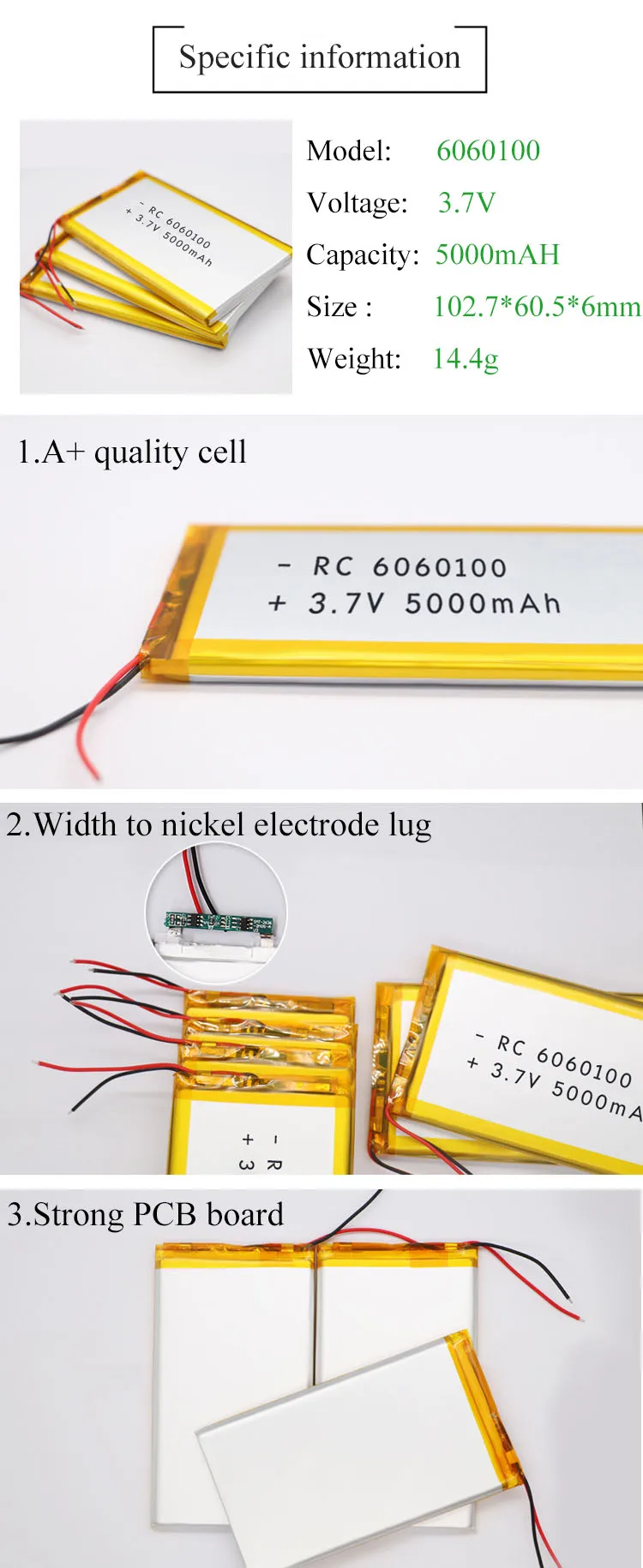

3.7V 5000mAh lithium polymer battery

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Consult immediately
Parameters
I know
Detail
Specification
Features:
1.With short-circuit production function, safe and reliable.

2.Good consistency, low self discharge.

3.Light weight, small and customized size.

4.Wide application for electronics and industry.
Item
Pack
Remark
Nominal Capacity
≥5000mAh
Fully Discharge to3.0V @ 0.2C.after standard charge
Nominal Voltage
3.7V
verge Discharge Voltage(discharged at 1CmA)(discharged at 1CmA)
Resistance
cell
≤90mΩ
Battery pack
≤170mΩ
Max. Constant Discharge Current
5000mA
1C
Charging Cut-off Voltage
4.20V(PCM)

Size
cell
7.2*13*31mm
Battery pack
7.2*13*31mm
Range Of Work Temperature
Charge
0~+60℃
Discharge
-20~+80℃
CTS Lithium Polymer Battery, Support Customized
Item
Type(3,7v nmc)
Capacity(mah)
T*W*H(mm)
Discharge rate
902030
NMC
500
9*20*30
1C
902527
NMC
550
9.3*25*27
1C
503040
NMC
600
5*30*40
1C
702050
NMC
700
7*20*50
1C
532362
NMC
720
5.3*23*62
1C
363957
NMC
800
3.6*39*57
5C
503448
NMC
950
5.2*34*48
1C
523450
NMC
1000
5.2*34*50
1C
602080
NMC
1000
6*20*80
1C
603045
NMC
1000
6*30*45
1C
752550
NMC
1000
7.5*25*50
1C
922444
NMC
1000
9.2*24*44
1C
803043
NMC
1100
8*30*43
1C
103040
NMC
1200
10*30*40
1C
375256
NMC
1200
3.7*52*56
1C
883450
NMC
1800
8.8*34*50
1C
113054
NMC
2000
11*30.3*54.8
5C
