3.7V 300mAh 602030 lithium polymer battery

Consult immediately
Detail
Product Description



Product description
602030 300mAh 3.7V   Lithium Polymer battery
Model No.602030
ChemistryLithium Polymer
Nominal capacity300mAh   0.2C Discharge
Internal resistance≤60mΩ
Nominal voltage(V)3.7V
Charging voltage4.20V
Min. end voltage3.00V
Max. charge current1.0C
Max. charge discharge current1.0C
Discharging Temp Range -10~+60ºC
Storage Temp Range-20ºC~55ºC
Cycle life≥500
PackingBulk packing

High proformace 602030 lithium polymer battery 3.7V 300mAh lipo battery for smart device/ GPSHigh proformace 602030 lithium polymer battery 3.7V 300mAh lipo battery for smart device/ GPS

Advantages:
1. High energy density: volume energy density can be 460Wh/L
2. Excellent security: no fire, no explore of short-circuit, over-charge, over-discharge, over-current, shock, vibration, crush, acupuncture.
3. Long cycle lifespan: capacity recovery can be above 80% after 500 cycles
4. High discharge voltage plateau: the 3.6V discharge voltage plateau is more than 42min
5.Environment-friendly: no PB, CD added
6.Flexible size design subject to different space of application
7. Hundreds of moulds for micro size with 10mAh-1000mAh
8. CE/RoHS Directive-compliant/REACH/UL/MSDS/UN38.3/IEC61233 standards

Detailed Images

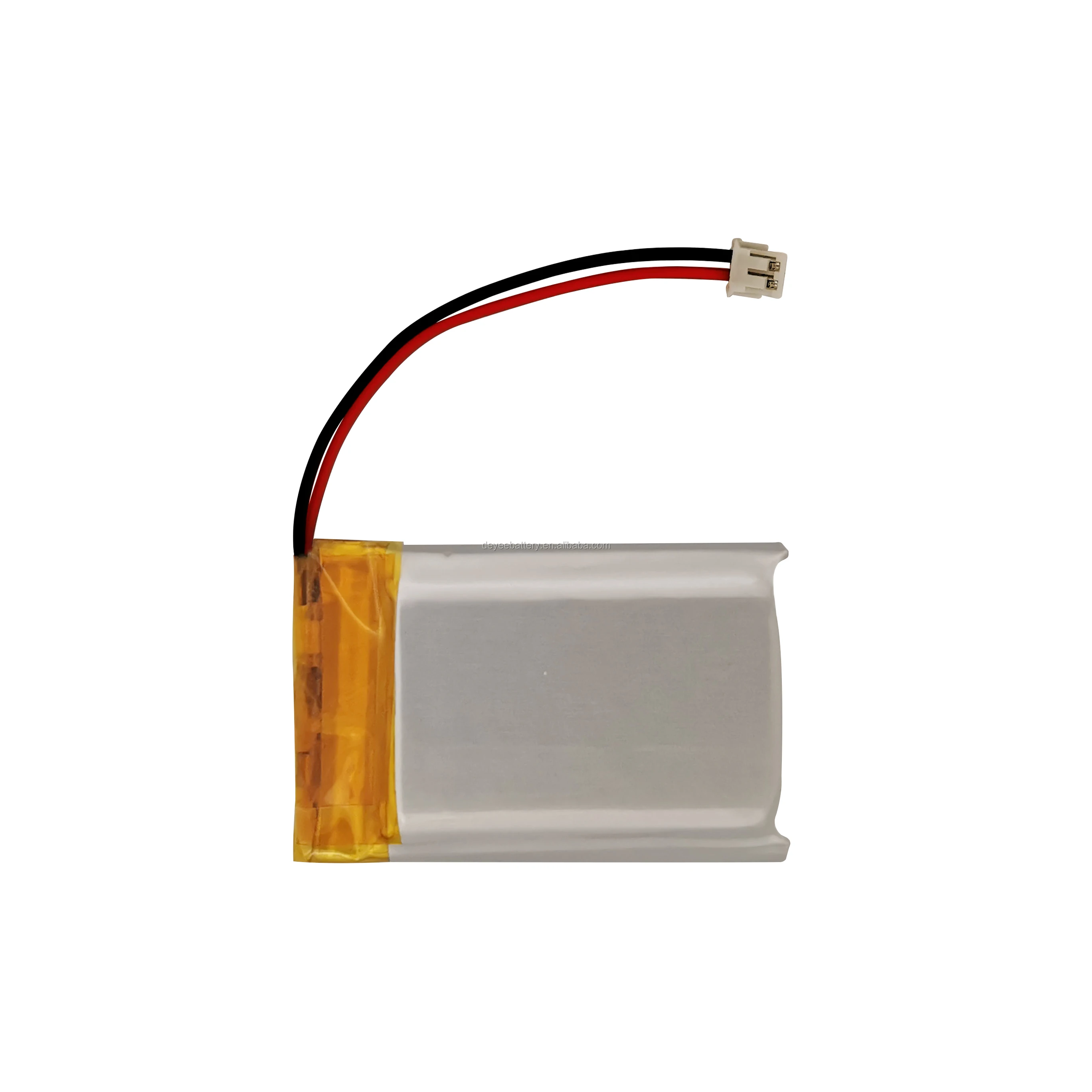

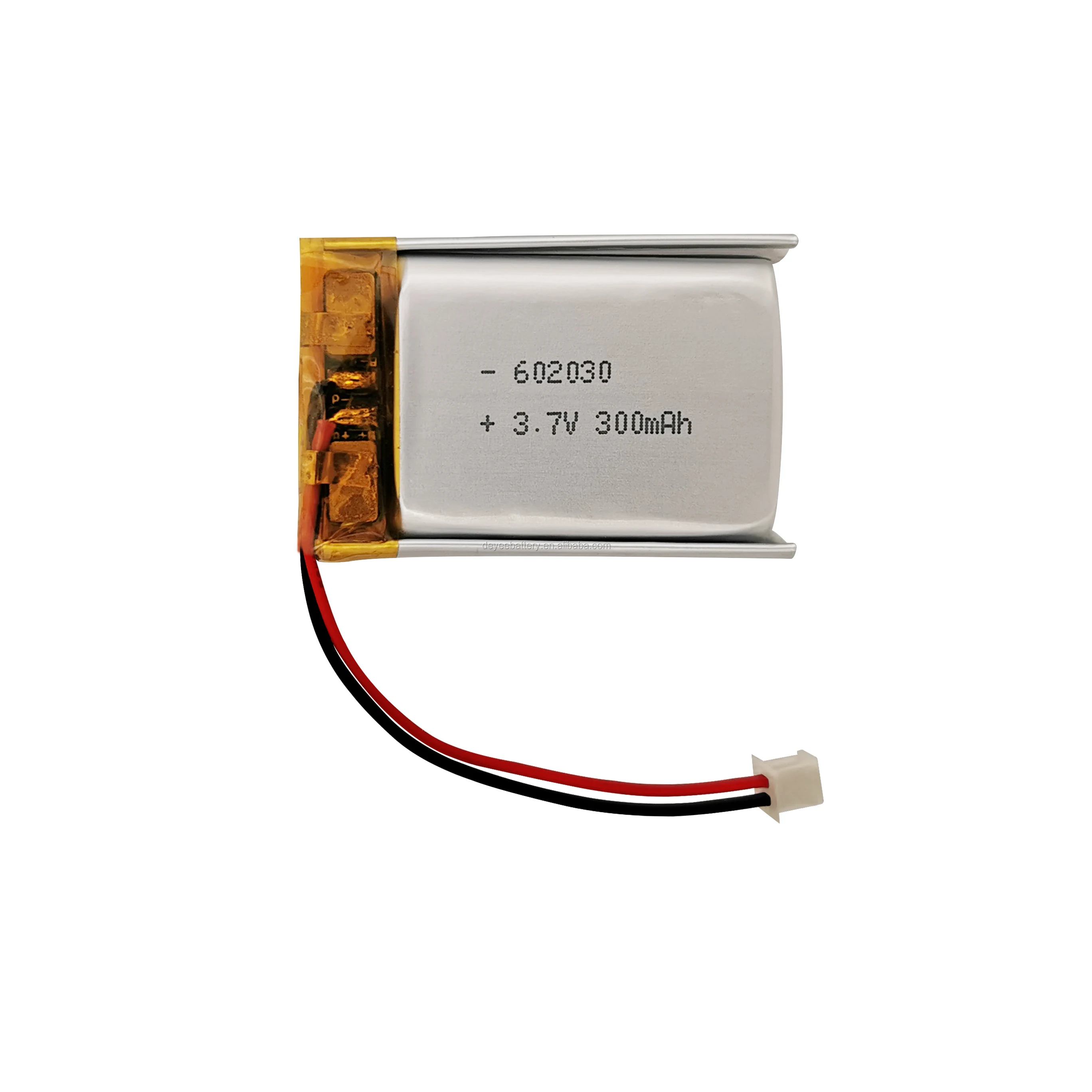

High proformace 602030 lithium polymer battery 3.7V 300mAh lipo battery for smart device/ GPS
