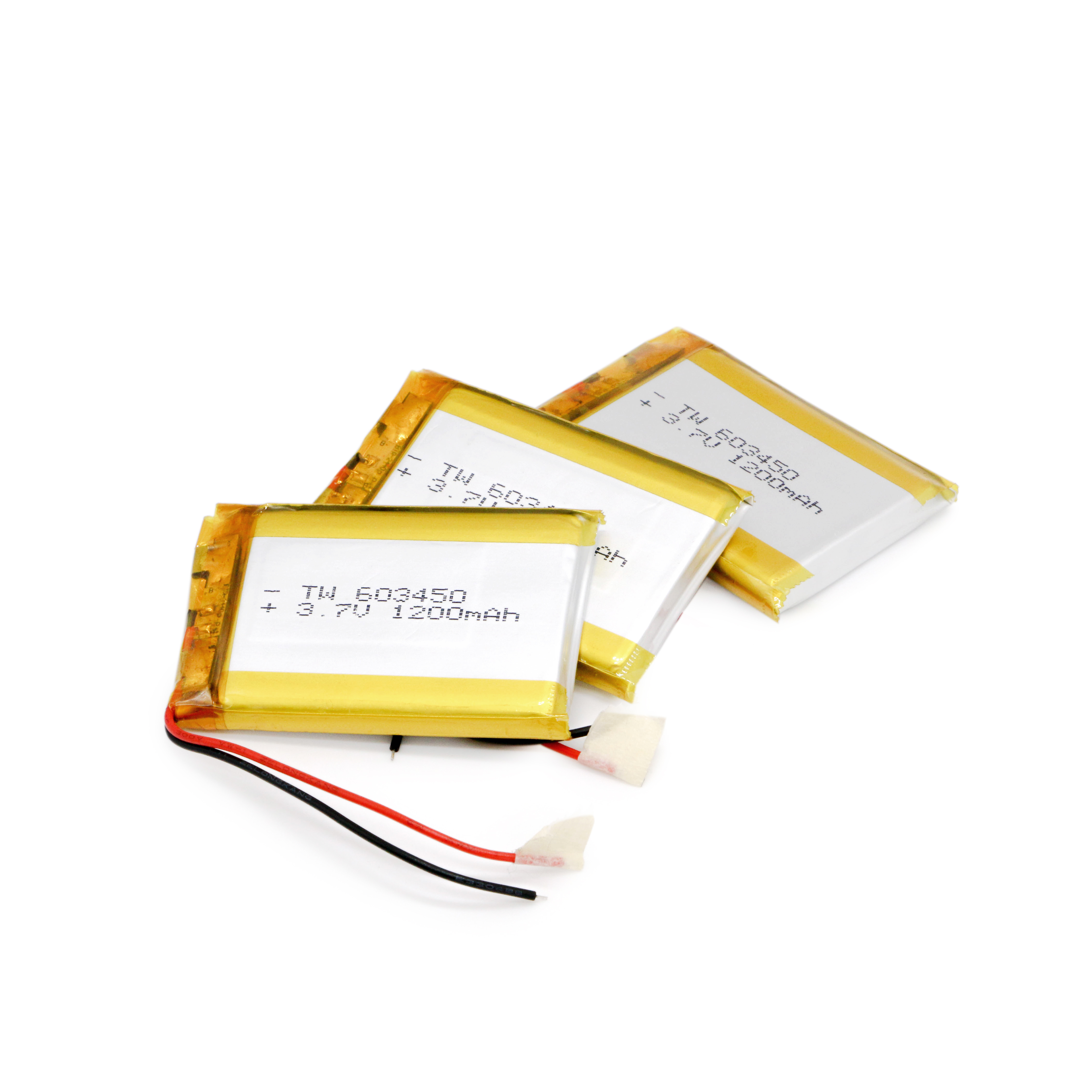

Lithium polymer battery 603450 3.7V 1200mAh rechargeable battery
Detail
3.7v 1200mah lithium polymer battery cells specification:
603450 Li-Po battery | |
Items | Specifications |
Charge voltage | 4.2V |
Nominal voltage | 3.7V |
Nominal capacity | 1200mAh @ 0.2C Discharge |
Lowest capacity | 1200mAh @ 0.2C Discharge |
Charge current | Standard Charging: 0.2C |
Rapid charge: 1.0C | |
Standard Charging method | 0.2C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C |
Charging time | Standard Charging: 2 hours(Ref.) |
Rapid charge: 1 hours(Ref.) | |
Max charge current | 1.0 C |
Max discharge current | 1.0 C |
Discharge cut-off voltage | 3.00V |
Operating temperature | Charging: 0℃~45℃ |
Discharging: 0℃~45℃ | |
Storage temperature | -10℃~ +45℃ |
Cell Dimension | Thickness: 6mm Max |
Width: 34mm Max | |
Length: 50mm Max (not including tabs)
| |
