Detail
Howell lisocl2 3.6v lithium battery 2/3aa er14335 for security system
| Electrical Characteristics | |
| Nominal Voltage: | 3.6V |
| Nominal Capacity: | 1600mAh |
| Max continuous current: | 15mA |
| Max pulse current: | 50mA |
| Typical Weight: | 14g |
| Li Metal Content: | 4.7g |
| Diameter(Max.): | 14mm |
| Height(Max.): | 33.5mm |
| Operating temp range: | -55°C-+85°C |
| Storage( Recommended): | +20°C--25°C |
| Key Features | |
| • High and stable operating voltage | |
| • Low self-discharge rate ( less than 2% after 1 year of storage at +20°c ) | |
| • Wide operating temperature range ( -55°c ~ + 85°c) / (-67°F ~ + 185°F) | |
| • Stainless steel container and cap | |
| • Hermetic glass-to-metal sealing | |
| • UL Component Recognition File Number MH47480 | |
| • RoHS compliant | |
| • CE, UN38.3 certificates | |
| Available Terminations | |
| • Tag1 ( radial tabs) | |
| • 2P, 3P, 3P-RP, 3P-S, 3P-S-RP ( radial pins) | |
| • AX ( axial leads)` | |
| • Connector, Flying Leads...etc | |
| Main Applications | |
| • Utility metering | |
| • Automatic meter reading | |
| • Buoys | |
| • Alarms and security devices | |
| • Measuring equipment | |
| • Tracking systems | |
| • Marine equipment | |
| • Professional electronics | |

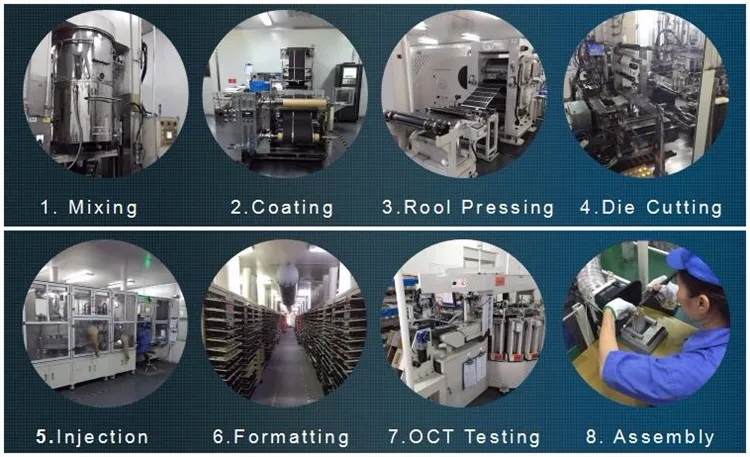

How to Make Battery
