ER34615 3.6V D 9000mAh LiSOCL2 battery

Consult immediately
Detail

ER34615 lithium thionyl chloride battery 3.6V 19Ah in D size LiSOCl2 battery

1.Specifications

Model No.

ER34615(D)

Nominal Voltage

3.6V

Nominal Capacity

19000mAh

Max Continuous Discharge Current

230mA

Max Pulse Discharge Current

500mA

Standard Discharge Current

2mA

Size(Max)

34.0 x 61.5 mm (diameter*height)

Weight

115g

Operating Temperature

-55°C to 85°C

Storage Temperature

-55°C to 85°C


2.Features of Lithium Thionyl Chloride Battery

- High and stable operating voltage
- High minimum voltage during pulsing
- Superior drain capability
- Higher power applications
- Low self discharge rate (less than 1% after 1 year of storage at + 25 C)

- Battery life higher than 10 years,depending on the application
- Stainless steel container

- Non-flammable electrolyte
- Safer operation in case of abuse

3.Applications:

- Military and other radio applications
- Alarm and security systems
- Beacons and emergency location transmitters
- GPS
- LED lighting applications

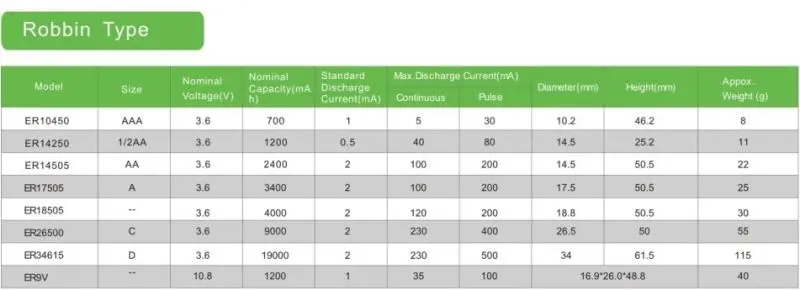

4.Models of Li-SOCl2 Battery
