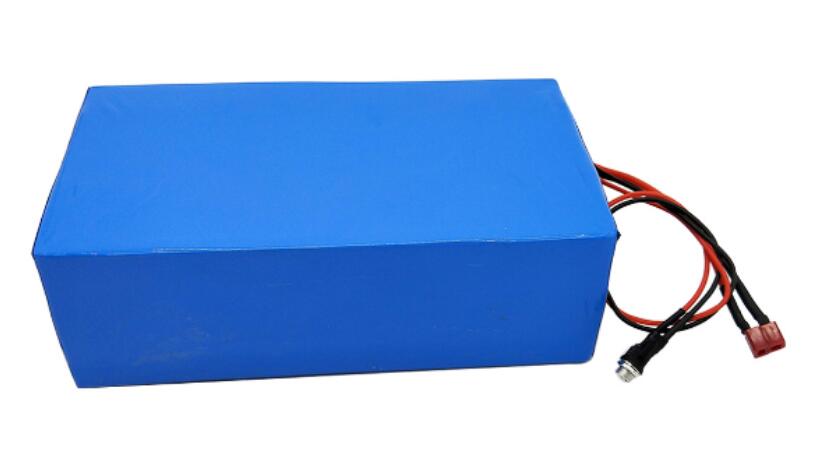

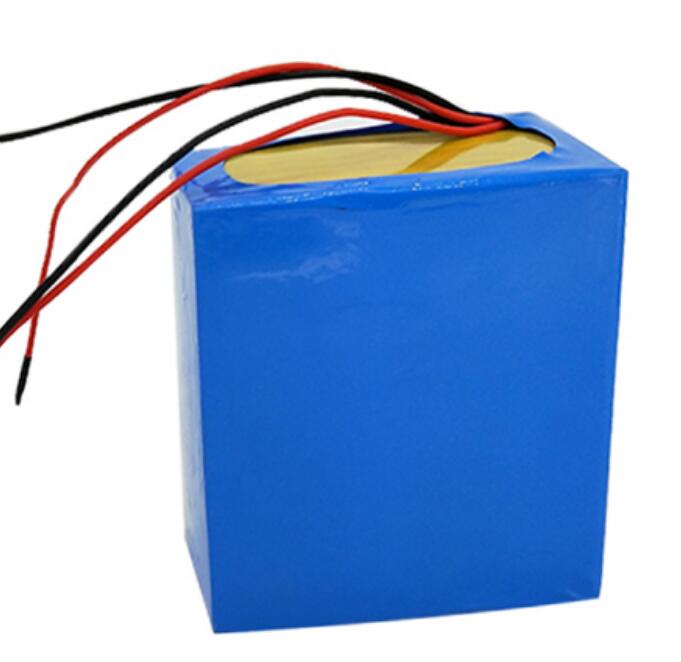

IFR battery pack 12V 4S5P 25Ah used for e-bike/scooter

Consult immediately
Detail
Product Description
1. Battery Cell Model 32650
2. Nominal Voltage 12.8V
3. Nominal Capacity 25Ah
4. Charge Voltage 14.4V
5. Structure 4S5P+PCM
6. Cycle life≥1500 times
7. Size L*W*H=223*115*70mm,customized
8. Weight about 2.86kg
9. Standard Disharge Current 0.2C
10. Standard Charge Current 0.2C
11. Max Continuous Discharge Current 3C
12. Fast Charge Current 1C
13. Peak Current 30A
14. Reference Over Discharge Cut Off Voltage 8V
15. Over Charge Protection Voltage 14.4V
16. Discharge Working Temperature -20-60°C
17. Charge Working Temperature 0-45°C
18. Recommended Storage Temperature 23 ± 5°C
