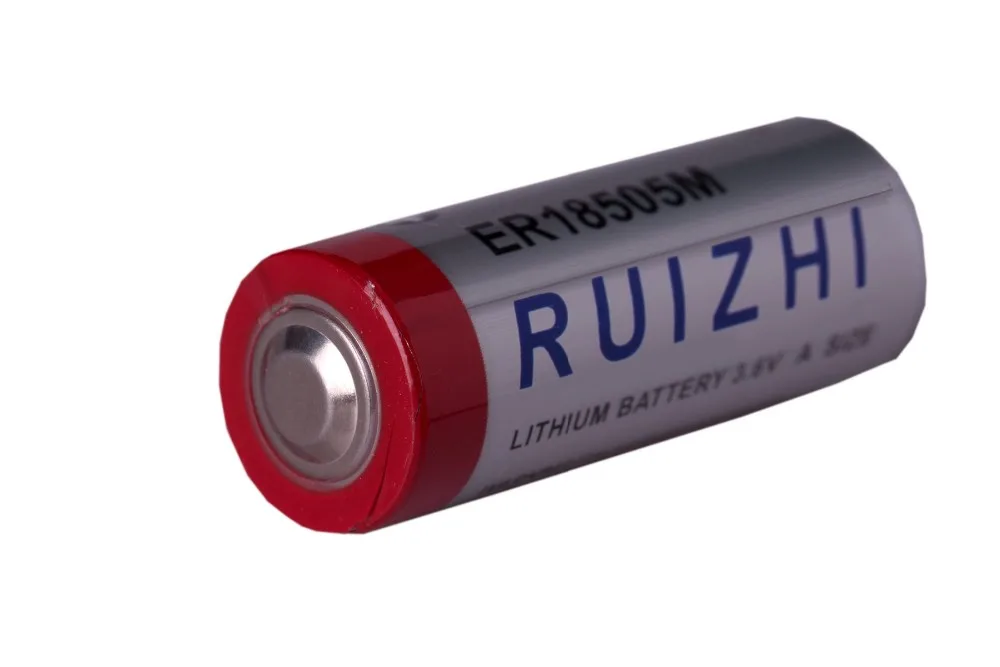

ER18505M 3.6V 3200mAh battery with connectors

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Consult immediately
Detail

Product Description
Characteristcs                   ER18505M
Nominal capacity
3200mAh
Nominal voltage
3.6V
Max.continuous current
1000mA
Max.pulse current capability
2000mA
Weight
Approx.32g
Dimension
Ø18.5*50.5mm
Operating temperature range
-60℃ ~+85℃
■ Haique battery has long storage lifetime.
■ Wide range of operating temperature.
■ Offer stable operating voltage and loading voltage platform.
■ Can offer small, medium and high pulse discharge current. Available series like bobbin type, spiral type and battery packs.
■ Adopt stainless steel material, laser and hermetic glass-to-metal welding sealed which keep our battery have a unique
   performance in wet environment.
■ Long using lifetime, it can be used above 5 years. In some special application, it can be used for more than 10 years (Depends on different working request).
■ High energy density, could achieve more than 650Wh/Kg. It is about 3-10 times of other series lithium battery.

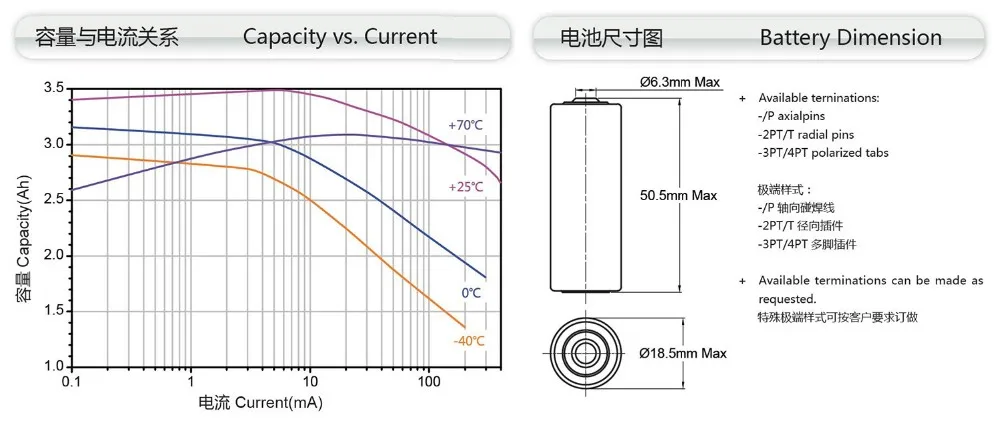

Technical Data
Advantages:
High and stable operating voltage
Low self-discharge rate(less than 1% after 1 year storage at +25℃ )
Hermetic glass-to-metal sealing
Non-flammable electrolyte
Spiral type
UL, SGS, CE, RoHS, UN38.3, FCC certified
ISO9001 approved
